Irreversible Locks IR

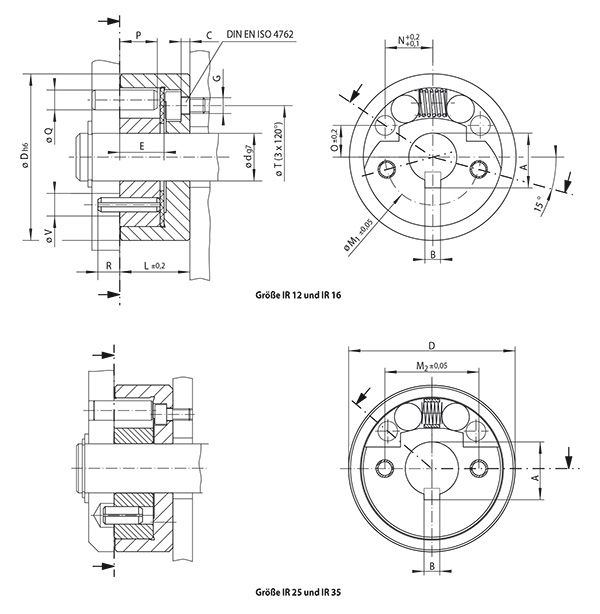

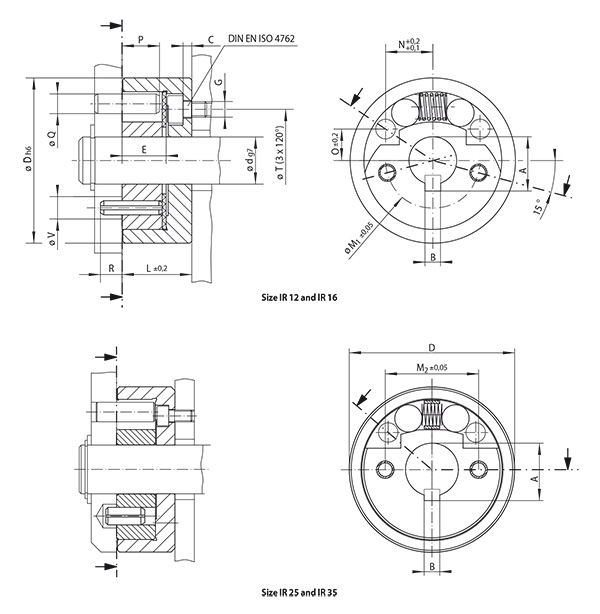

IR Zeichnung D

Selection

Please note that for this model max. 1 selection is possible.

  Type Size Design d
[mm]
D
[mm]
L
[mm]
Weight
[kg]
sachnummer
IR 12 R 12 42 17,7 0,15 4883-021101-000000
IR 16 R 16 48 20,4 0,22 4883-024101-000000
IR 25 R 25 85 30 1,1 4883-044101-025H35
IR 35 R 35 120 45 3,3 4883-068101-000000

No claims for liability or warrenty claims can be derived from use of the CAD-Files.

All CAD-Files have benn produced with the greatest of care. In spite of this, they serve merely for the purpose of illustration.

Only design drawings which have been released by RINGSPANN are binding.

File format:
